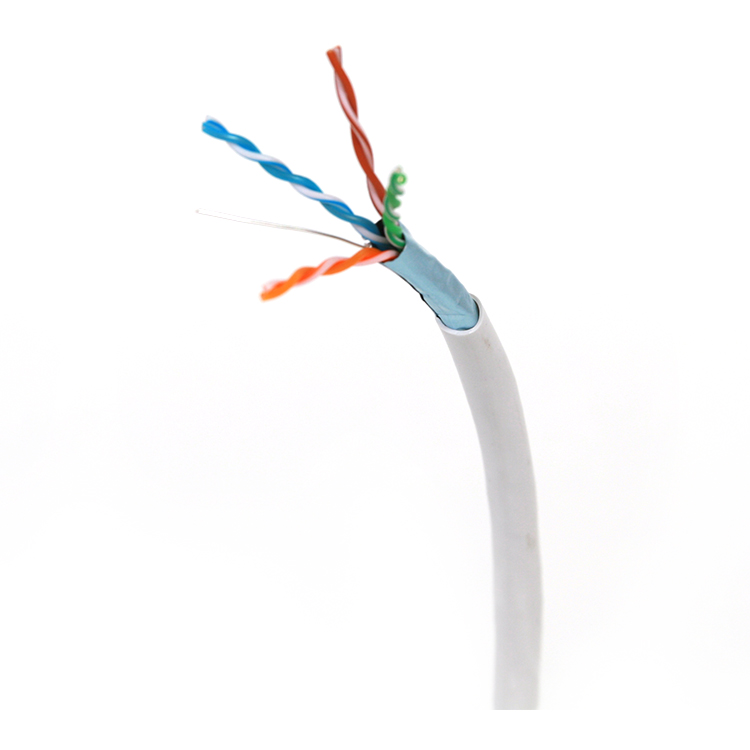

F/UTP Cat.5e

DESCRIPTION
· Cable diameter : 0.236inch (6.0mm)
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Reel in a Box is standard, so wire pulls through box opening for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
PART LISTS
Description Part Number
Category 5e F/UTP 4Pair CMX FTP-E-C5G-E1VN-X 0.5X004P/xx
Category 5e F/UTP 4Pair CM FTP-E-C5G-E1VN-M 0.5X004P/xx
Category 5e F/UTP 4Pair LSZH 332-1 FTP-E-C5G-E1ZN-X 0.5X004P/xx
Category 5e F/UTP 4Pair LSZH 332-3 FTP-E-C5G-E1ZN-M 0.5X004P/xx
APPLICATION
· Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
TECHNICAL DETAILS
Characteristics units Specification
DC Resistance Ω/100m ≤ 9.5
DC Resistance Unbalance % ≤ 2.00
Capacitance Unbalance

(Pair to Ground)

pF/km

(800~1000Hz)

≤ 1600
Insulation Resistance MΩ·m ≥ 5000
Dielectric Strength DC kV/sec 2.5 / 2
Impedance

(Characteristic mean)

Ω 100 ± 5%  (at 100MHz)
Return Loss dB/100m ≥ 20 + 5 * log(freq)       , 4     ≤  f <   10MHz

≥ 25                                , 10   ≤  f <   20MHz

≥ 25 – 7 * log(freq/20)  , 20   ≤  f ≤  100MHz

Attenuation

(Insertion Loss)

dB/100m ≤ 1.967*√(freq) + 0.023*(freq) + 0.1/√(freq)

, 4 ~ 100 MHz

NEXT Loss dB/100m ≥ 65.3 – 15*log(freq)  ,4 ~ 100MHz
Power sum NEXT Loss dB/100m ≥ 62.3 – 15*log(freq)  ,4 ~ 100MHz
ELFEXT Loss dB/100m ≥ 64 – 20*log(freq)     ,4 ~ 100MHz
Power sum ELFEXT Loss dB/100m ≥ 61 – 20*log(freq)     ,4 ~ 100MHz
Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq)   ,4 ~ 100MHz
Propagation Delay Skew ns/100m ≤ 45, 4~100MHz
